hammer mill

In feed mill plant, hammer mill is necessary for feed mill equipments, which is mainly applied to crush feed raw material into standard size. So it is good to process raw materials into feed pellets smoothly and effectively rather than block the feed pellet machine. There are two kinds of hammer mills in the feed mill plant. One is SFSZ series vibrating hammer mill, the other is 999 series teardrop hammer mill.

SFSZ Series Hammer Mill

SFSZ  hammer mill
Model Capacity(t/h) Power(KW) Note
SFSZ70*75 75/90 5.5-6.5 Diameter of the screen:1.2mm
Material: corn at a MC 13%
SFSZ130*75 160/200 11-15 Diameter of the screen:1.2mm
Material: corn at a MC 13

Strong Points of SFSZ Series Hammer Mill

  • A variety of crushing raw materials like corn, cotton-seed waste and bean waste. 95% reduced to a size of 60 meshes, without blockage.
  • High production. A vibrating screen increases efficiency by 20-30%.
  • Auxiliary facilities are the same as water drip hammer mill. These can be added without increasing power requirements, thereby making it easier to update an old machine.
  • The machine is stable and reliable. The vibrating screen is easily replaced.

999 Series Hammer Mill

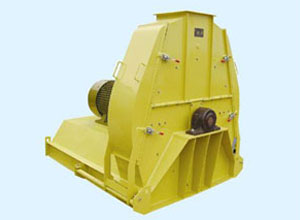

999 hammer mill
Model 999-I 999-II 999-III 999-IV
Capacity(t/h) 12-15 25-35 38-50 52-70
Power(KW) 75/90 110/132 200/220 250/315
Weight(kg) 2810-3200 3600-3800 4200-4400 4900-5400

Strong Points of 999 Series Hammer Mill

  • Compare to normal feed hammer mill, this kind of hammer has a teardrop-shaped crushing chamber and double crushing design with 25% more capacity. The distance of the blades is adjustable.
  • In addition, teardrop hammer mill is equipped with a side door with fastener in order to repair and maintain the machine easily.
  • Seals provide a safe and environmentally friendly work area.
  • High-precision balancing equipment to reduce noise and increase the life span of the bearings.
  • What’s more, it has an adjustable speed feeder. Belt-conveyor feeders or frequency-controlled screw feeders are optional.
  • Teardrop hammer mill is used in livestock and poultry feed equipment, aquatic product manufacturing facilities, and alcohol plants, citric acid plants

SFSP Series Hammer Mill

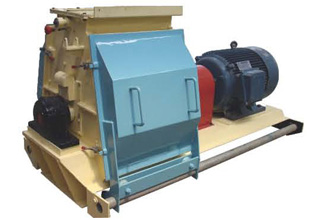

SFSP hammer mill
Model SFSP56*36 SFSP56*40 SFSP56*60 SFSP112*40
Capacity(t/h) 22,30 30,37 55 90,110
Power(KW) 2-4 4-6 8-15 12-18
