mixer

Mixer is designed for small or medium poultry raising farm or small animal feed processing factory. This type of feed mill mixer is able to grind wheat, corn and a lot of other farm grains, which is mainly used for processing different kinds of feed for different poultry like pig, chicken, rabbits and fish etc. Therefore, this machine is hot sale all over the world with high capacity and advanced technology.


SLHSJ Single Shaft Paddle Mixer

Advantages of SLHSJ Single Shaft Paddle Mixer

Mixing in gravity--free state won’t cause segregation. Multiform liquids can be added in. Conveyed by three chains running at a low speed for increased stability. Short mixing period (40-120 sec/batch), mixes evenly at a high rate of consistency (CV=5%, min 2%). Two doors structure; discharges rapidly, with no leakage, and little residual. Variable system for adding liquids and it can be matched with compressed air jetting system. Widely used at premixing compounds, and in the poultry, aquatic feed, chemical, and pharmaceutical industries.

Technical Parameters of SLHSJ Double Paddle Mixer

Model	SLHSJ0.3	SLHSJ0.5	SLHSJ1.0	SLHSJ2.0	SLHSJ3.0	SLHSJ4.0
Power(KW)	150	250	500	1000	1500	2000
Capacity(kg/p)	3	5.5	11	18.5	22	30

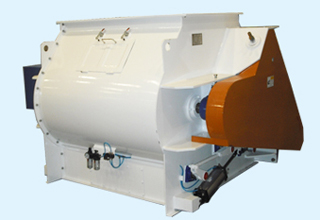

SLHY Series Single Shaft Double Belt Mixer

	Model	SLHYa0.5	SLHYa1.0	SLHYa2.0	SLHYa4.0
	Power（KW）	4	7.5	15	30
	Capacity(kg/p)	250	500	1000	2000
Advantages of SLHY Series Single Shaft Double Belt Mixer
Adjustable paddle structure. Reliable spray system. Mixing uniformity: ≤7,Mixing time:2-4 minutes. Feed inlet on one side with decompression holes on both sides. The gap between the paddle and the machine slot is adjustable Many liquids--like water, oil, etc,--can be easily added in.

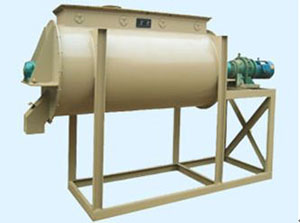

SHW Series Single Shaft Double Belt Mixer

	Model	SHW0.5	SHW1.0	SHW2.0	SHW5.0
	Power（KW）	4	7.5	15	30
	Capacity(kg/p)	250	500	1000	2500
Advantages of SHW Series Single Shaft Double Belt Mixer
Mixing uniformity≤7, Mixing time:2-3 minutes Widely used in small and medium scale feed plant in the animal and breeding industry Original and patented product. Body section is round to prevent un-mixable angles. No blockage inside; feed inlet on one end for feeding, while packing on the other.

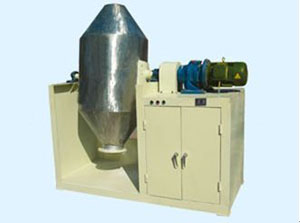

SYTH Series Waist Drum Type Mixer

	Model	SYTH0.1	SYTH0.2	SYTH0.5	SYTH1.0
	Capacity(kg/p)	10	20	50	100
	Power（KW）	0.75	1.1	2.2	4.0
Advantages of SYTH Series Waist Drum Type Mixer
Mixing uniformity ≤5%. Highly compact. Widely used in the feed, chemical, fertilizer, pharmaceutical and food industries.

The feed mill mixer is divided into two main parts: a crushing system and material mixing system.

In crushing system, the raw material can be put into the crushing room with two ways automatically or manually according to customers’ needs. With the help of hammer leaf beating and scrubbing, the raw material will be crushed into mea lines or graininess. Under the centrifugal air effect, these mea lines and graininess are got into a impeller casing through the sieve pore. In mixing system, the crushed material will be transferred to the top of the room by the pipe line and mixed up and down completely, spinner from right to left via by the air. So the material can be mixed evenly which is preparing for processing feed.
