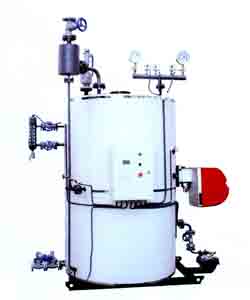

steam system
DZH Steam System
Technical Parameters
| Type | DZH0.5-0.7-S | DZH1-0.7-S | DZH2-0.7-S | DZH4-0.7-S |
|---|---|---|---|---|
| Rated Vaporizing Amount | 0.5T/H | 1T/H | 2T/H | 4T/H |
| Rated Steam Pressure | 0.7Mpa | 0.7Mpa | 0.7Mpa | 1.25Mpa |
| Rated Steam Temperature | 170.4°C | 170.4°C | 170.4°C | 193.3°C |
| Inlet Water Temperature | 20°C | 20°C | 20°C | 20°C |
| Heating Surface | 20.65sqm | 30.4sqm | 56.2sqm | 120.1sqm |
| Fire Grate Surface | 0.84sqm | 1.47sqm | 2.88sqm | 4.15sqm |
| Design Fuel | Biomass | Biomass | Biomass | Biomass |
| Transport Dimension(LxWxH) | 3100x1810x2400mm | 3900x2100x2900mm | 4370x2350x3195mm | 5250x2600x3430mm |
| Transport Weight | 6.07t | 7.5t | 10t | 21t |
